Manual Stacker Double Mast

Mechyantra Manual Stacker My/mst/1500 Capacity - Kg 1500 Capacity at top Height- Kg 750 Load center distance - mm 460 Lowered Height- mm 76 Lifting Height - mm 2000 Over All Height- mm 2600 Close Height - mm 1570 Fork width out to out - Mm 740 Fork width in to in - mm 435 Thickness - mm 150+55 Fork length - Mm 1150 Leg out to out - Mm 685 Leg in to in - Mm 490 Leg length - Mm 900 Piston dia - mm 35 Wheel caster nylon- (break1/1 nose)Mm 180x50(7x2”) Leg Wheel - (2 nose)Mm 60x80 Net Weight - Kg 300 Structure - Design Single Mast Structure Made From ‘C’ Channel Section, Supported By Heavy-Duty Deep Grooved Guide Rollers. Forks Lifted ByMeans Of 2 Nos. Single Chain & Pulley Design Hydraulic Unit - 1 No. Vertical Mounted, Single Acting, Honed Hyd. Cylinder with HardChrome Plated Piston Wheels - 2 Nos. 180x50 mm. Size White Virgin Nylon Wheels at Front (Handle)Side & 4 Nos. 82 X 70 mm. Size Load Roller Wheels at Rear Side. All Wheels Contains Double Ball Bearings

Mechyantra Manual Stacker Double Mast

Mechyantra Manual Stacker Capacity - Kg 1500 Capacity at top Height - Kg 600- 700 Lowered Height - mm 80-90 Load center distance - mm 460 Max. Fork Height -mm 3000 Over All Height -mm 3550 Close Height - mm 2070 Fork width out to out - Mm 850 Fork width in to in - mm 540 Thickness - mm 150+55 Fork length -Mm 1150 Leg out to out -Mm 490 Leg in to in - Mm 290 Leg length -Mm 1150 Piston dia - mm 35 Wheel caster nylon (break2 nose)Mm 180x50(7x2”) Leg Wheel (2 nose)Mm 50x90 Net Weight - Kg 300 Structure- Design Single Mast Structure Made From ‘C’ Channel Section, Supported By Heavy-Duty Deep Grooved Guide Rollers. Forks Lifted By Means Of 2 Nos. Single Chain & Pulley Design Hydraulic Unit - 1 No. Vertical Mounted, Single Acting, Honed Hyd. Cylinder with HardChrome Plated Piston Wheels - 2 Nos. 180x50 mm. Size White Virgin Nylon Wheels at Front (Handle) Side & 4 Nos. 82 X 70 mm. Size Load Roller Wheels at Rear Side. All Wheels - Contains Double Ball Bearings For

Mechyantra Manual Stacker

Mechyantra Manual Stacker Model - My/MS/1000/1600 Capacity - Kg 1000 Load To Capacity At Top height - kg 700 Load center distance - mm 460 Min. Fork Height - Mm 80-90 Max. Fork Height - Mm 1600 close Height - Mm 2040 Fork Width out to out - Mm 860 Fork width in to in - Mm 570 Singal Fork width - Mm 140+55 Fork length - Mm 1150 Leg Out to Out - Mm 710 Leg in to in - Mm 525 Leg Length - mm 1010 Piston dia - mm 31.5 Wheel caster nylon (break2 nose) - Mm 180x50(7x2”) Leg Wheel (2 nose)- Mm 50x90 Net Weight - Kg 190-210 Structure - Design Single Mast Structure Made From ‘C’ Channel Section, Supported By Heavy-Duty Deep Grooved Guide Rollers. Forks Lifted By Means Of 2 Nos. Single Chain & Pulley Design Hydraulic Unit - 1 No. Vertical Mounted, Single Acting, Honed Hyd. Cylinder with HardChrome Plated Piston Wheels - 2 Nos. 180x50 mm. Size White Virgin Nylon Wheels at Front (Handle) Side & 4 Nos. 82 X 70 mm. Size Load Roller Wheels at Rear Side. All Wheels Contai

Mechyantra Walky Fully - Battery operated pallet truck

Mechyantra Walky Fully - Battery operated pallet truck Capacity Kg - 1500 Load capacity kg - 800-900 Lowered Height - mm 85 Fork Length - mm 1150 Fork Width - mm 685 Max. Fork Height - mm 200 Total length - mm 1624 Wheel base length - mm 1270 Overall width - - mm 690 Front wheel track - mm 530 Total height - mm 1225 Front wheel size - mm 80x60 Driving wheel size- mm 210x70 Turning radius - mm 1440 Wheels Material- Nylon Load center - mm 600 Drive motor v/Kw 24/0.6 Drive - Electric Battery v/Ah 2x12/65 Structure - Will Be Made From Heavy-Duty M.S. ‘C’ Section with Heavy-Duty Lifting Levers & Tie-Rod Plate thickness 4 mm. Hydraulic Unit - 1 No. Vertical Mounted Hyd. EN-8 ground and hard chrome plated piston Hand hand-operated pump with Honed Hyd. Cylinder & Hard Chrome Plated Piston Rod. Hyd. Pump Includes ‘Pu’ & Plate Based Teflon Oil Seals With Built In Overload Protection Valve Wheels - 2 Nos. 180x50 mm. Size nylon Wheels at Front (Handle) Side & 2 No

Mechyantra Scissor lift

Mechyantra scissor lift table Model - my/sl/1000/1000 Capacity – 1000 kg Lifting height – 1000 mm Lowered height – 380 mm Platform length - 1000 mm Platform size width – 510 mm Net weight – 108 kg Wheel – castor PU Wheel size – 6x2 movable bracket Bracket – 2 x 2 fix

Mechyantra Scissor lift

Mechyantra scissor lift table Model - my/sl/750/1500 Capacity – 750 kg Lifting height – 1500 mm Lowered height – 470 mm Platform length - 1200 mm Platform size width – 610 mm Net weight – 152 kg Wheel – castor PU Wheel size – 1.5/5” movable bracket Bracket – 2 x 2 fix.

Mechyantra scissor lift

Mechyantra scissor lift table Model - my/sl/500/1500 Capacity – 500 kg Lifting height – 1500 mm Lowered height – 340 mm Platform length - 925 mm Platform size width – 500 mm Net weight – 106 kg Wheel – castor PU Wheel size – 1.5/5” movable bracket Bracket – 2 x 2 fix.

Mechyantra scissor lift

Mechyantra scissor lift table Model no - my/sl/500/900 Capacity – 500 kg Lifting height – 900 mm Lowered height – 280 mm Platform length - 820 mm Platform size width – 500 mm Net weight – 78 kg Wheel–castor PU Wheel size – 5 x 2 movable bracket Bracket – 2 x 2 fix

Bike lift

Heavy-duty bike lift Capacity - 300 kg Size - 6 x 1.5 ft Height - 457 mm

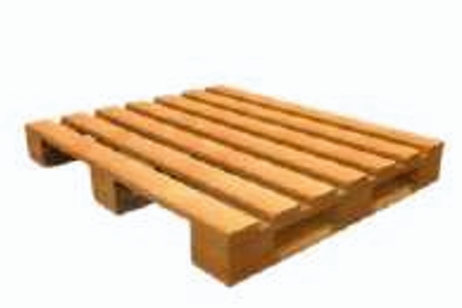

Pine Wood Pallets

Pine Wood pallets - Budget Friendly Length - 1200 mm Width - 1000 mm Height - 140 mm Static load - 2000 kg Dynamic load - 1000 kg

Amaron battery

whole sale price 4 ah battery.

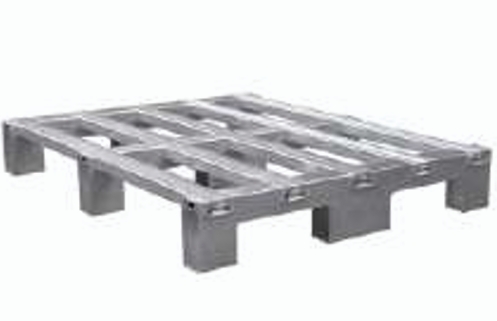

stainless steel pallets

1200 x 1000 x 125 static - 2 ton dynamic - 1 ton

wooden pallets

1200 x 1000 x 125 mm capacity - 2000 kg static load - 2000 kg dynamic load - 1000 kg

Hand pallet truck Spring

90 mm / 100 mm / 110 mm

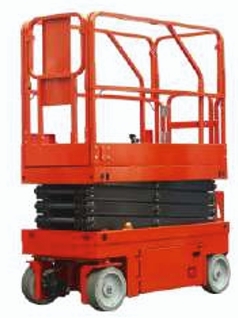

Self Propelled Maintenance Scissor Lift

Platform Size - 1.5*5.1 Mtr Moving - Electrical Operated Lifting - Electrical Operated Lifting Height - 6/9/11/15 Mtr Closing Height- 1.82 Mtr Capacity - 300 / 500 KG Wheel Type - Pneumatic

Electric Wire Rope Hoist

Chain Pulley Block

Double Wheel Barrow

Single Wheel Barrow

Plastic / M.S. Two/ Four Way Pallet

Manual Scissor Lift

Platform Size - 900*300 / 1000*800 / 1200*600 MM Moving - Manual Lifting - Manual Lifting Height - 900 / 1500 / 1000 MM Closing Length - 200MM Capacity - 500/ 800/ 1000 KG Wheel Type - Polyurethane

Sugar/ Salt Bag Truck

Wire Net Metal Pallet

Wire Net Box Truck

Portable Self Truck

3 Rack Tray Trolley

Box Trolley

Floor Crane

Moving - Manual Lifting - Manual Boom Extended Length - 8 Feet Boom Closing Length - 4 Feet Capacity - 2000KG Wheel Type - Cast Iron

Door Type Platform Truck

Semi Battery Operated Floor Crane

Moving - Manual Lifting - Battery Operated Boom Extended Length - 8 Feet Boom Closing Length - 4 Feet Capacity - 2000KG Wheel Type - Cast Iron

Fully Battery Operated Crane

Boom Extended Length - 8 Feet Moving - Battery Operated Lifting - Battery Operated Boom Closing Length - 4 Feet Capacity - 2000KG Wheel Type - Cast Iron

HIgh Lift Pallet Truck

Fork Length - 1150MM Fork Width - 550MM Closing Height - 90MM Lifting Height - 800 / 1000MM Lifting Capacity - 2000KG Sheet Thickness - 4.5MM Wheel - Nylon/Polyurethane/Mild Steel

Two Side Platform Truck

High Lift Pallet Truck

Fork Length - 1220MM Fork Width - 685MM Closing Height - 90MM Lifting Height - 800 / 1000 MM Lifting Capacity - 2000KG Sheet Thickness - 4.5MM Wheel - Nylon/Polyurethane/Mild Steel

Platform Truck (Scooter Tyre)

Semi Battery Operated Pallet Truck

Moving - Battery Operated Lifting - Manual Fork Length - 1150 / 1220MM Fork Width - 550 / 685MM Closing Height - 90MM Lifting Height - 200MM Lifting Capacity - 3000KG Sheet Thickness - 4.5MM Wheel - Nylon/Polyurethane/Mild Steel

Platform Truck (Turn Table)

Platform Truck (Turn Table)

L Type Platform Truck

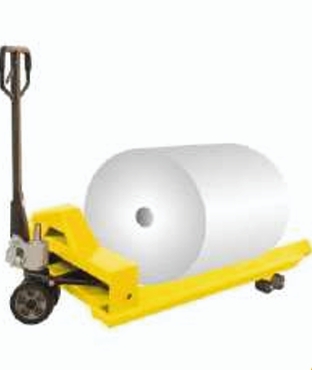

Customize Pallet Truck

Fork Length - 1500/ 2000/ 2200/ 2500/ 2800 MM Fork Width - 540/ 550/ 650/ 685/ 870 MM Closing Height - 55/ 65/ 75/ 90 MM Lifting Height - 100/ 150/ 200/ 250 MM Lifting Capacity - 3000KG Sheet Thickness - 4.5MM Wheel - Nylon/Polyurethane/Mild Steel

4 Wheel Drum Trolley

3 Wheel Drum Trolley

Drum Lifter Cum Tilter

Fully Electric Stacker

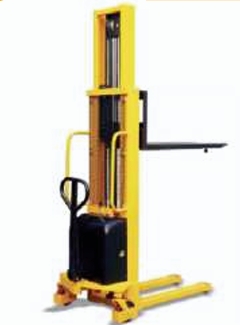

Semi Battery Operate Stacker

Capacity - 2000 kg / 1500 kg / 1000 kg Fork length - 900 mm / 1050 mm / 1150 mm Fork width - adjustable upto - 260 mm to 800 mm Overall length - 3800 mm Lifting height - 3500 mm wheel - 4 nylon battery charge time- 2 hour battery capacity - 90 ah / 125 ah / 135 ah. lifting motor - 12/1.6 v / kw charger - v/a 12/15

Hook Stacker

Semi Battery Customize Reel Stacker

Roller Stacker

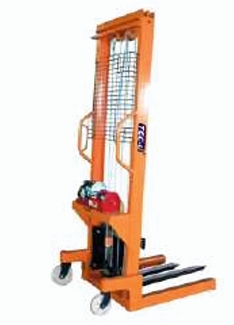

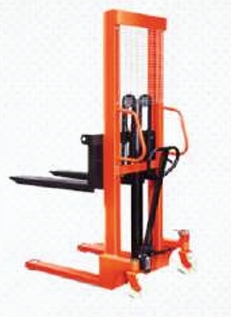

Hydraulic Manual Stacker

Capacity - Kg 2000 Load To Capacity At Top height - kg 1100 Min. Fork Height - Mm 80-90 Load center distance - mm 460 Max. Fork Height - Mm 1600 close Height - Mm 2040 Fork Width out to out - Mm 860 Fork width in to in - Mm 570 Fork Width - Mm 140+55 Fork length - Mm 1150 Leg Out to Out - Mm 710 Leg in to in Mm - 525 Leg Length mm - 1010 Piston dia mm - 40 Wheel caster nylon (break2 nose)- Mm 180x50(7x2”) Leg Wheel (2 nos)Mm 50x90 Net Weight Kg - 200 Structure - Design Single Mast Structure Made From ‘C’ Channel Section, Supported By Heavy-Duty Deep Grooved Guide Rollers. Forks Lifted By Means Of 2 Nos. Single Chain & Pulley Design Hydraulic Unit - 1 No. Vertical Mounted, Single Acting, Honed Hyd. Cylinder with HardChrome Plated Piston Wheels - 2 Nos. 180x50 mm. Size White Virgin Nylon Wheels at Front (Handle) Side & 4 Nos. 82 X 70 mm. Size Load Roller Wheels at Rear Side. All Wheels Contains Double Ball Bearings For Easy Movement Of Stacker Handle - I

Hand Pallet Truck

Fork Length - 1150MM Fork Width - 550MM Closing Height - 90MM Lifting Height - 200MM Lifting Capacity - 3000KG Sheet Thickness - 4.5MM Wheel - Nylon/Polyurethane/Mild Steel

Hand Pallet Truck

Fork Length - 1150MM Fork Width - 550MM Closing Height - 90MM Lifting Height - 200MM Lifting Capacity - 3000KG Sheet Thickness - 4.5MM Wheel - Nylon/Polyurethane/Mild Steel
